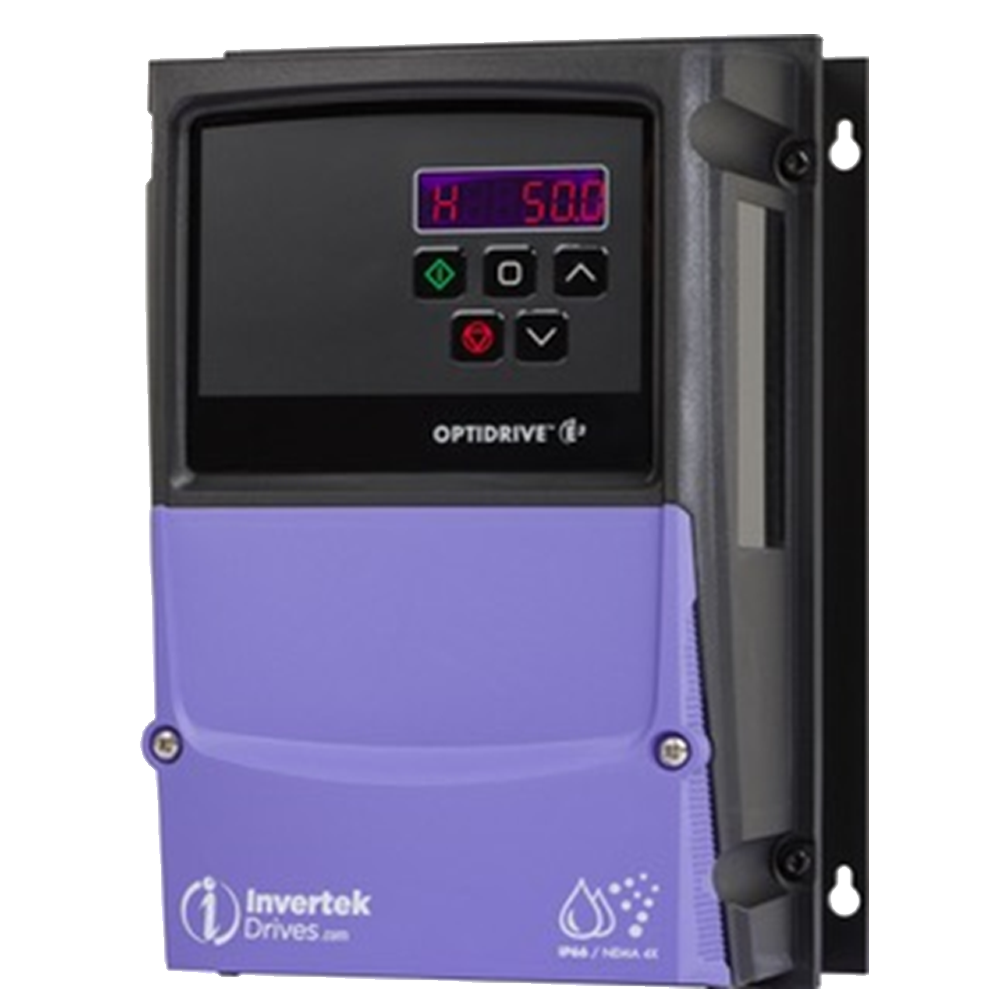

Invertek E3 2.2kw VFD (IP66)
Invertek VFDs are considered to be one the highest quality VFDs in the world. Featuring built-in internal EMI filters, these variable frequency drives are fully C-tick approved and electrically certified for both domestic and industrial installations.
Featuring easy wiring, on screen display and speed control as external speed control capabilities these VFDs are sure to impress.
**Please note:
Due to the volatile nature of VFDs, CNC3D provide minimal support for configuring and setting up any VFD. Under Australian Law all 240V work MUST be completed by a licenced Electrician.
If you do not have experience setting up VFD's, we do not recommend changing any settings yourself and to seek advice from your licensed electrician that is installing your VFD for you.
Failing to configure your VFD correctly may result in catastrophic events occurring such as the VFD physically exploding if settings are not configured correctly prior to powering on any VFD - this may void your warranty
For any warranty claims on VFD's, you MUST provide us with the tax reciept and certificate of compliance paperwork from your licenced Electrician for us to contact them regarding the issue.
** CNC3D do not keep local stock of the Invertek VFD'S, Your VFD will be shipped directly from Invertek. If you have ordered multiple items you will receive 2 separate packages**
Single phase
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 1 |
| Supply Current Continuous | 19.2 A |
| Supply Fuse or MCB (Type B) | 25 A |
OUTPUT RATINGS
| Motor Output Rating | 2.2 kW (3 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 10.5 A |
CABLE INFORMATION
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
FACTORY BUILD OPTIONS
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP66 Outdoor Non-switched |
DIMENSIONS
| Size | 2 |
| Height | 257 mm (10.12 in) |
| Width | 188 mm (7.4 in) |
| Depth | 182 mm (7.17 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
PACKAGED DIMENSIONS
| Height | 215 mm (8.46 in) |
| Width | 235 mm (9.25 in) |
| Depth | 375 mm (14.76 in) |
| Weight | 4.2 kg (9.26 lbs) |
3 Phase (For marine Vessels)
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 3 |
| Supply Current Continuous | 12.1 A |
| Supply Fuse or MCB (Type B) | 16 A |
OUTPUT RATINGS
| Motor Output Rating | 2.2 kW (3 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 10.5 A |
CABLE INFORMATION
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
FACTORY BUILD OPTIONS
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP66 Outdoor Non-switched |
DIMENSIONS
| Size | 2 |
| Height | 257 mm (10.12 in) |
| Width | 188 mm (7.4 in) |
| Depth | 182 mm (7.17 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
PACKAGED DIMENSIONS
| Height | 215 mm (8.46 in) |
| Width | 235 mm (9.25 in) |
| Depth | 375 mm (14.76 in) |
| Weight | 4.2 kg (9.26 lbs) |
3 Phase unit
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 7.5 A |
| Supply Fuse or MCB (Type B) | 16 A |
OUTPUT RATINGS
| Motor Output Rating | 2.2 kW (3 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 5.8 A |
CABLE INFORMATION
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
FACTORY BUILD OPTIONS
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP66 Outdoor Non-switched |
DIMENSIONS
| Size | 2 |
| Height | 257 mm (10.12 in) |
| Width | 188 mm (7.4 in) |
| Depth | 182 mm (7.17 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
PACKAGED DIMENSIONS
| Height | 215 mm (8.46 in) |
| Width | 235 mm (9.25 in) |
| Depth | 375 mm (14.76 in) |
| Weight | 4.2 kg (9.26 lbs) |
