Display of position not updated

Question

Hello,

First of all: a great looking interface and possibilities for my Arduino CNC shield controlled DIY router!

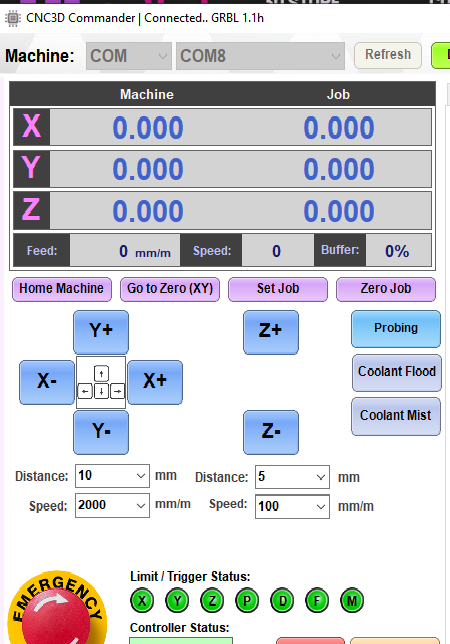

I have installed Sharp CNC control and I am able to move the axis with the jog control, but the display of the poisition is not updated and stays at 0.000. The steppermotors do move!

Thanks

GP

CNC3D · Accepted Answer

Hi,

This may be a really simple fix.

In the Manual Command section in the "Run Job" tab, type in $10=3 and send it. It should update the read out and show you the command buffer also.

The setting will be permanently set on the controller so you'll only need to do it once :)

Let us know if this works!

CNC3D · Answer

Hi,

Thanks for the feedback. This is an easy fix.

In the manual command box type $10=3 and send.

This will show the values and extra values like buffer and RPM.

I hope this helps!

Regards,

Dave

foldertjes · Answer

Thanks CNC3D / admin, this solved the issue!! Great support  Cheers foldertjes
