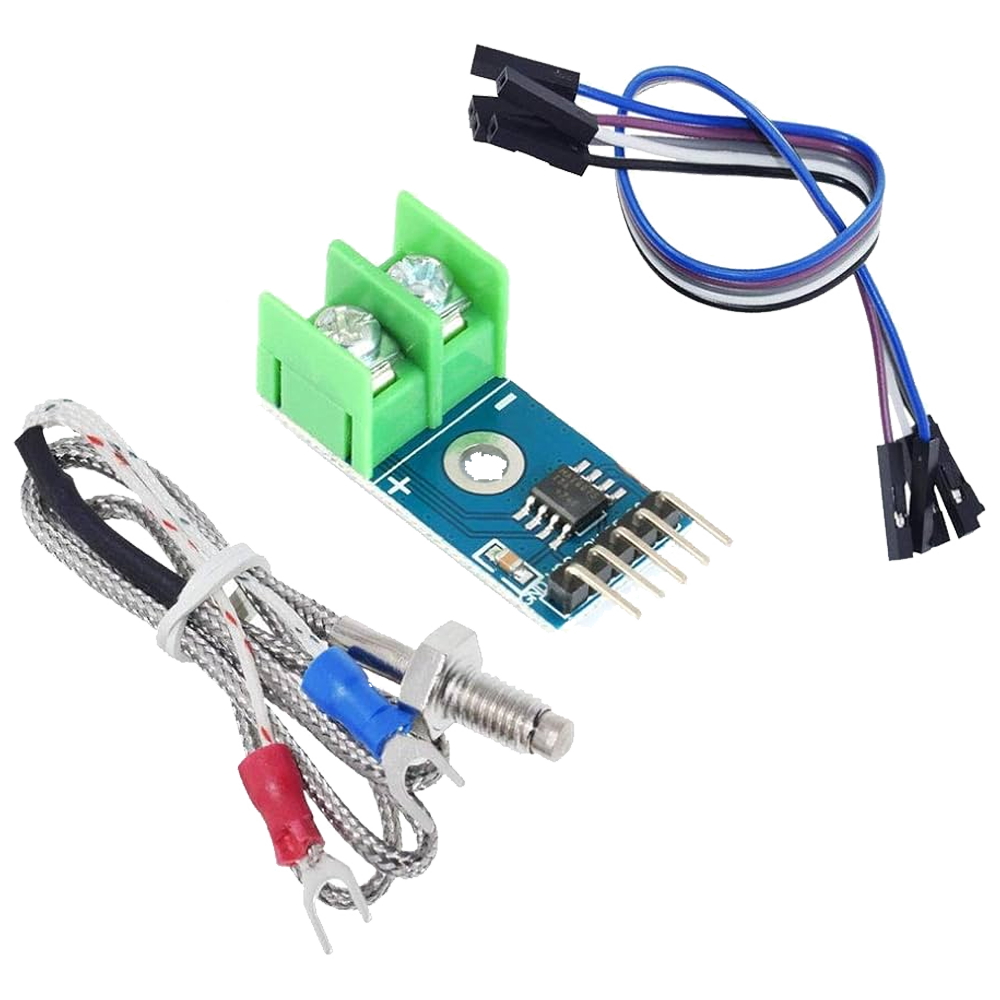

Arduino-Compatible MAX6675 K-type Thermocouple Sensor Module

The MAX6675 performs cold-junction compensation and digitises the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI-compatible, read-only format.

This converter resolves temperatures to 0.25°C, allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8 LSBs for temperatures ranging from 0°C to +700°C.

Specification:
Temperature range: -20 ° C -  1024° C.
Temperature resolution: 0.25 ° C.
Wide operating voltage range: 3. 0 ~ 5. 5V
Operating current: 50mA.
Operating temperature range: -20 ° C~ 85 ℃.
Module interface: GND VCC SCK CS SO
Supply voltage: 3 ~ 5V DC
Module size: 15mm * 25mm

Package includes:
1 x MAX6675 Module
1 x K-type Thermocouple
1 x 5-colour DuPont flylead

Wiring:
GND =  Connect to system ground.  This ground needs to be in common with the MCU.
VCC =   Connect to 3.0 – 5.5V.  Typically connected to MCU operating power.
SCK =   Serial Clock Input.  Connect to any digital pin on MCU.
CS =      Chip Select.  Connect to any digital pin on MCU.
SO  =     Serial Data Output.  Connect to any digital pin on MCU.
